PRECAST WALL TH GREEN

PRECAST WALL TH GREEN

The first structural exterior wall that can take on the challenges of the future

The calculated carbon impact of this formulation is 160 kg CO2/m3 of concrete, compared to 278 kg CO2/m3 for the standard formulation using CEM I, i.e. a 42% reduction of CO2 emissions for the concrete used to make Precast wall TH Green

42% reduction of CO2

Rwall = up to 9.5 m2.K/W

Delivery by gas-powered lorries 20% reduction of CO2 emissions

Life 100 years 100 % recyclable

Insulated Premur for Limonest | FEHR Group

Precoffré® TH Green Low Carbon

incorporating biosourced insulation based on wood fiber, meeting the requirements of RE2020, a low-carbon concrete formulation reducing the carbon footprint by 42%, and the use of 100% recycled gravel in the concrete making up the Precoffré® TH Green.

an exclusive product of FEHR Group

Low carbon concrete | FEHR Group

Application areas

Individual housing✔︎
Collective housing✔︎
Offices✔︎
Shops✔︎
Schools✔︎
Hospitals✔︎
Sports complexes✔︎
Cultural complexes✔︎
Beam-wall structures✔︎

Comparative table

Study: comparative constructive solutions by Karibati, Montreuil - September 2020

 Amount of recycled materials (% by weight)Global warming potential (kg eq CO2)
Precoffré® TH Green Low Carbon39%41.79
Concrete veil + exterior insulation 25cm PSE0%61.23
Wooden frame wall + composite wood cladding, 28cm wood fiber insulation0%64.40

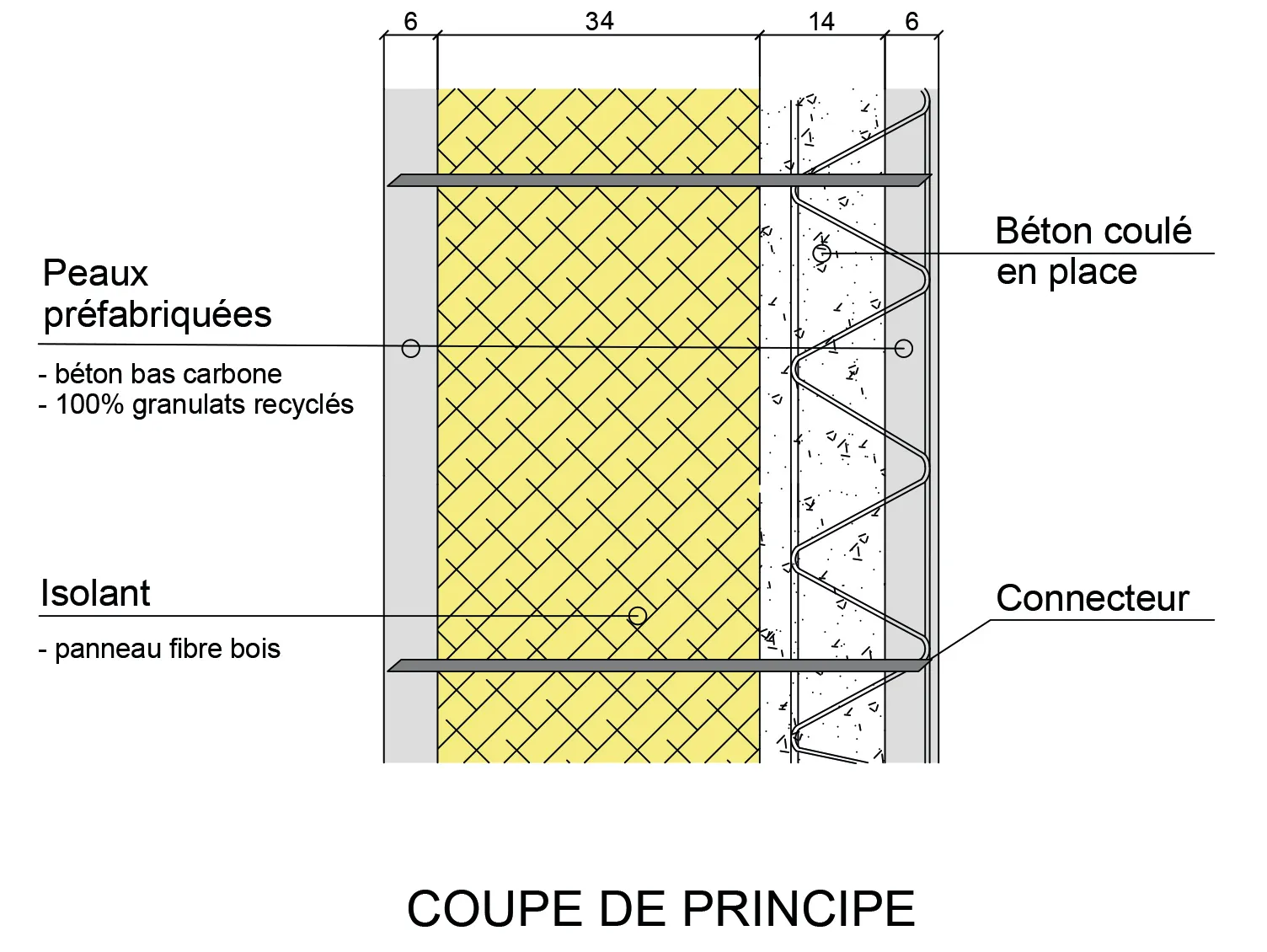

Principle cut

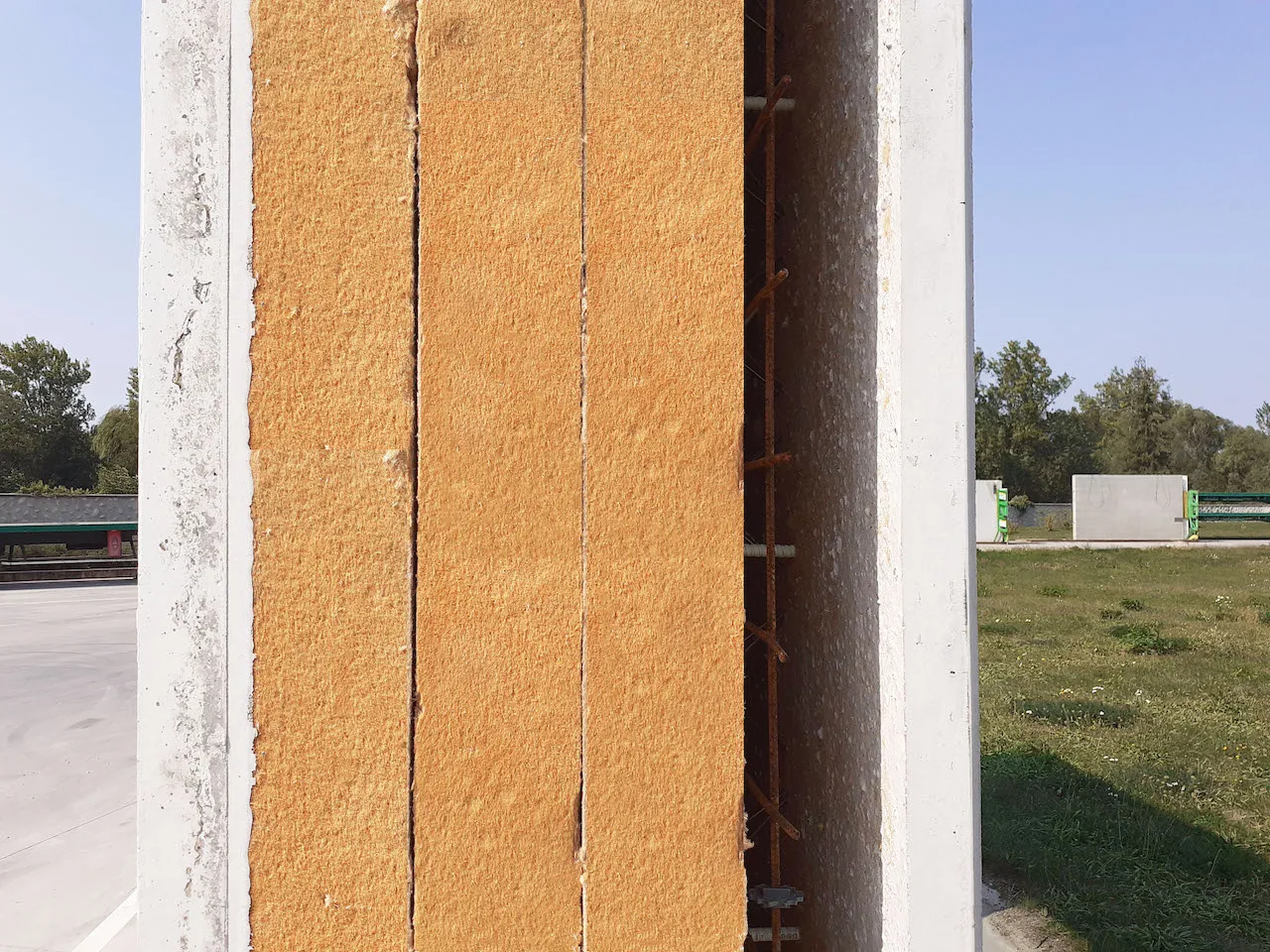

Cut photo

Very low carbon concrete

Aggregates from deconstruction

Biosourced insulation adapted to RE2020

100% recyclable wall

Integrated joinery for maximum air/water tightness

Integrated safety during installation

Customizable cladding and color

Download

Precoffré® TH Green Documentation
6.7 MB
Prémur Bas Carbonne: the first structural prefabricated facade wall that meets tomorrow's challenges, biosourced insulation based on wood fiber

A precast wall for every construction project

Need insulation? Opt for Thermal. Combine exceptional technology and finishing with Architectural. Gain 44% productivity with Integral, the only precast wall that promises ease of installation, while optimising safety and performance on site.
