Precast Wall TH Green
The first ultra-low-carbon prefabricated wall
Incorporating biosourced insulation based on wood fiber, meeting the requirements of RE2020, a low-carbon concrete formulation reducing the carbon footprint by 42%, and the use of 100% recycled gravel in the concrete making up the Precoffré® TH Green.
- 42% reduction in CO2 emissions
- Rmur = up to 9.5 m2.K/W
- Gas truck delivery reduces CO2 emissions by 20%
- Lifespan 100 years 100% recyclable
| Amount of recycled materials (% by weight) | Global warming potential (kg eq CO2) | |
|---|---|---|
| Precoffré® TH Green Low Carbon | 39% | 41.79 |
| Concrete veil + exterior insulation 25cm PSE | 0% | 61.23 |
| Wooden frame wall + composite wood cladding, 28cm wood fiber insulation | 0% | 64.40 |

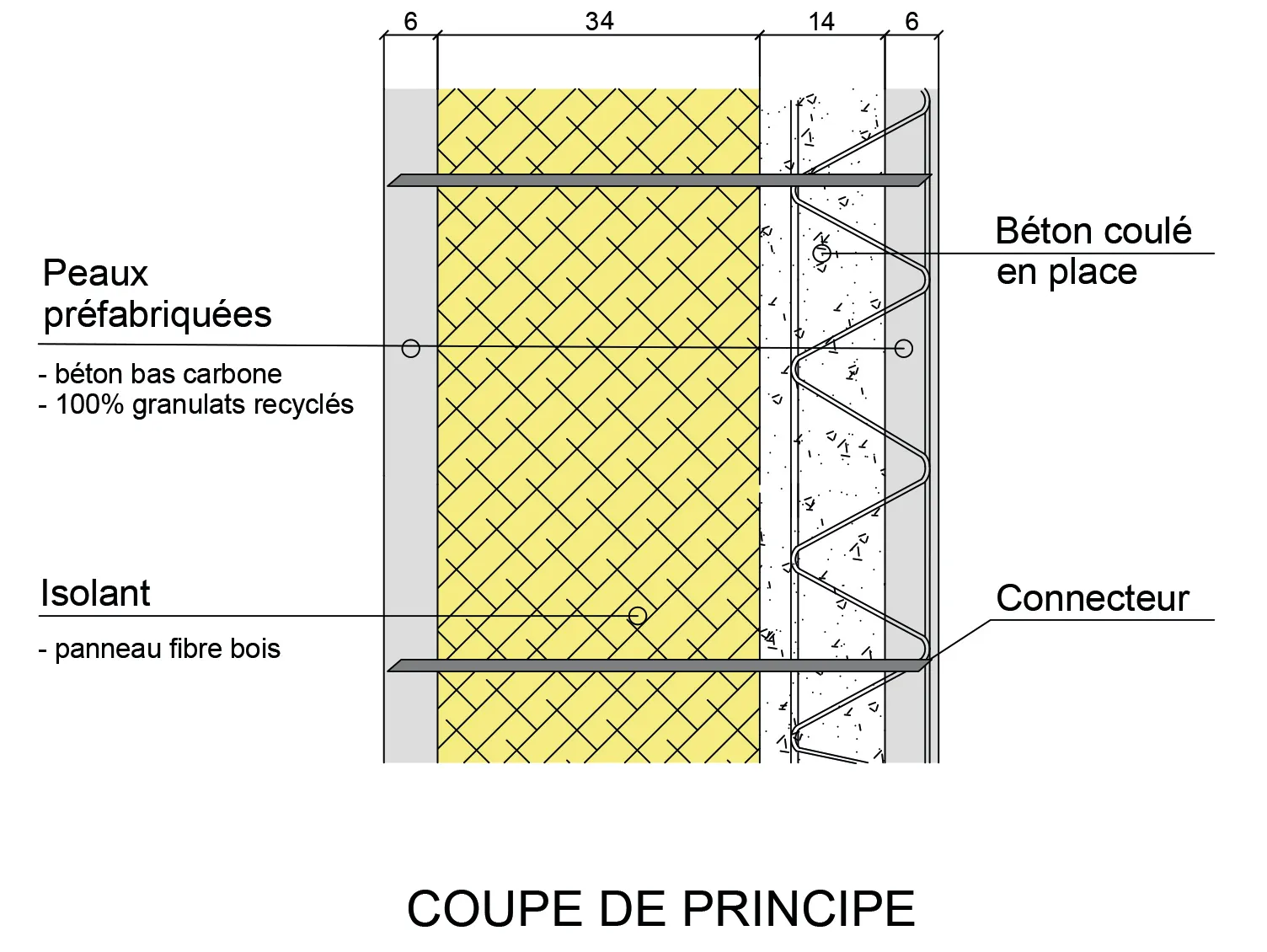

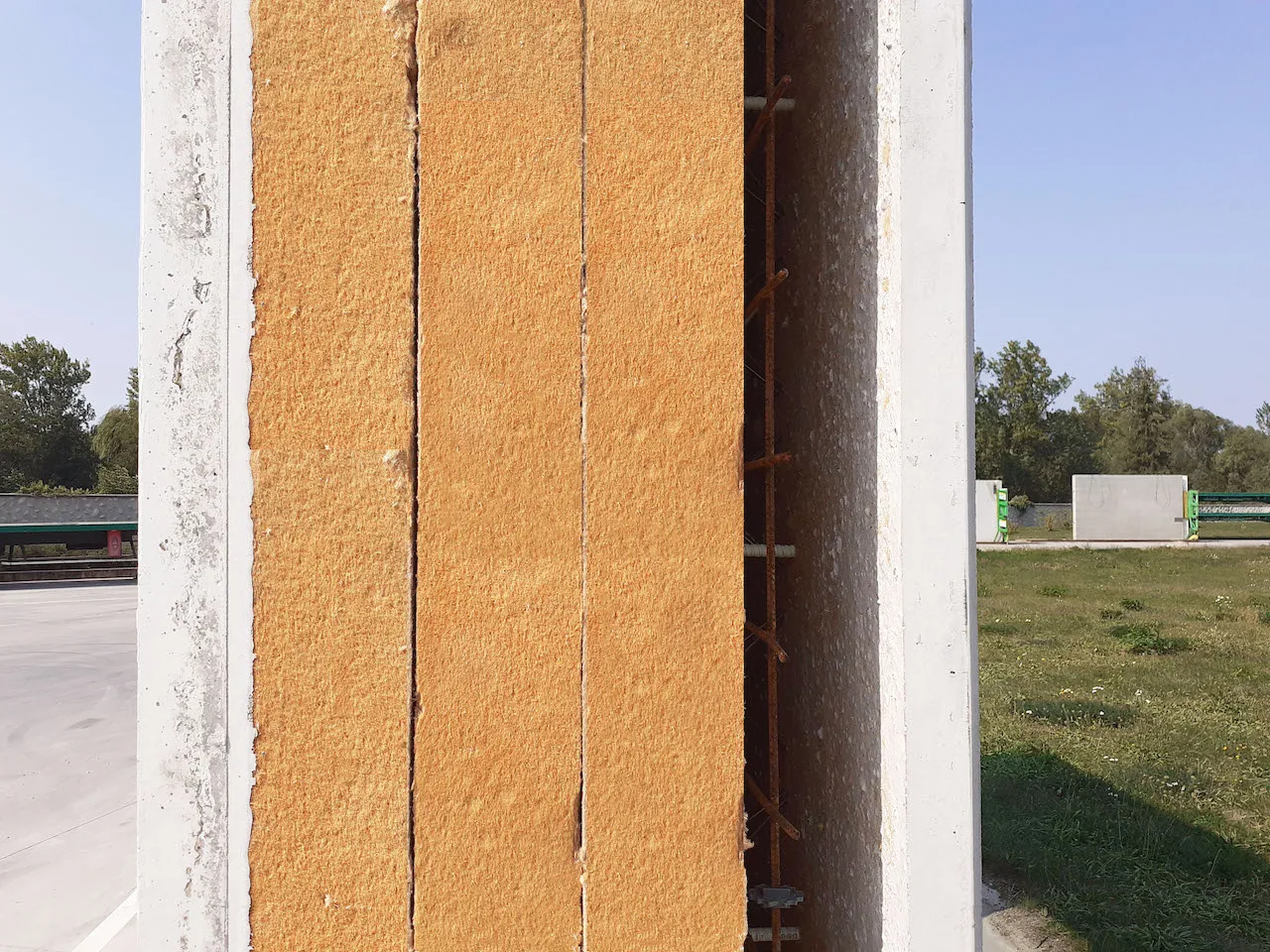

This thermal premur (concrete wall with integrated formwork and insulation) is composed of very low-carbon concrete, biosourced wood fiber insulation and factory-integrated joinery.
The concrete is formulated with low-carbon cement (CEM III, for example), combined with an optimized admixture to guarantee the usual performances. The carbon impact is thus reduced by 42% compared with the conventional solution (carbon impact of concrete ~ 160 kg CO2/m3).
The insulation used in Précoffré® TH Green is wood fiber, as an alternative to the EPS or PU foam normally used, enabling the carbon impact associated with the choice of insulation to be divided by 5. Insulation thicknesses of up to 36cm meet the most stringent requirements for minimum energy loss (overall wall performance up to U = 0.105 W/m2.K or R = 9.5 m2.K/W).
- Very low carbon concrete
- Aggregates from deconstruction
- Biosourced insulation adapted to RE2020
- 100% recyclable wall
- Integrated joinery for maximum air/water tightness
- Integrated safety during installation
- Customizable cladding and color
