FOBB Fehr Ossature Bois Béton® Woodwall Ductal®

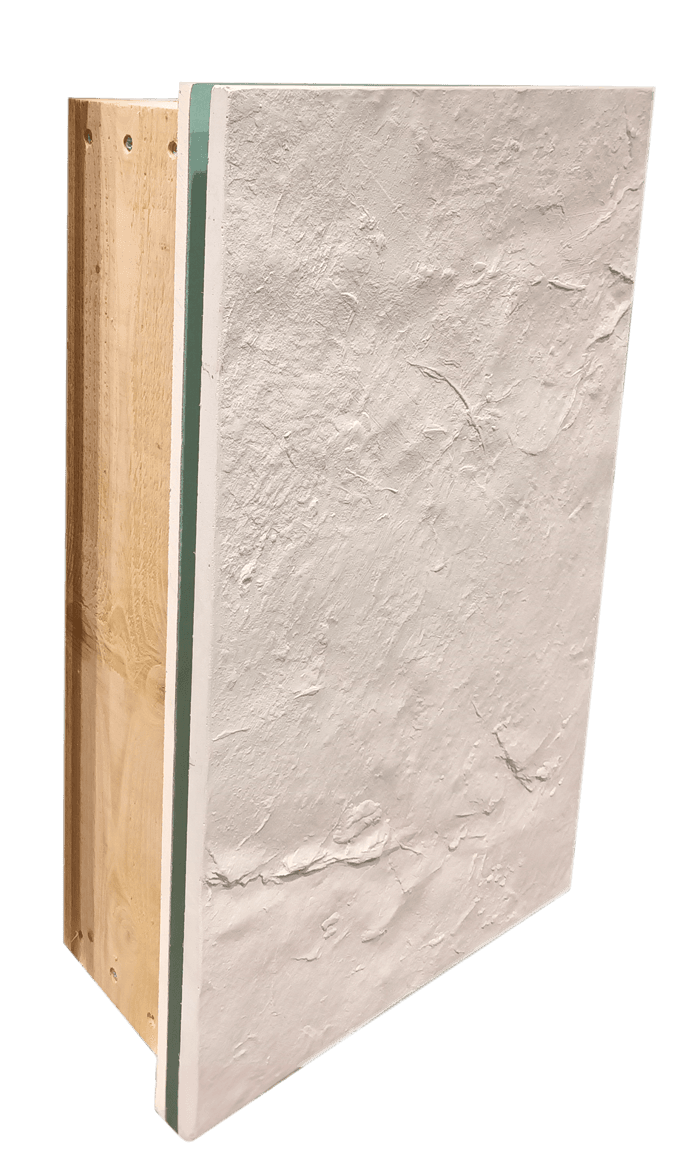

The FOBB solution is a mixed wooden framed wall including insulation, combined with a thin Ultra High Performance Fibre-Reinforced Concrete outer skin.

  • A lightweight wall: wood/concrete mix
  • Panel length, width and thickness are variable according to the project: up to 5.40 x 3.20 m - horizontal installation
  • Exceptional thermal performance (avoids thermal bridging at the wall/floor junction)
  • More habitable space thanks to walls that are thinner than with traditional solutions (minimum thickness 22 cm)
  • Reduced weight
  • Customisable facing colour & texture
DocumentationEn savoir plus ↓
FOBB Fehr Ossature Bois Béton® Woodwall Ductal®

Domaine d'application

Bâtiments neufs ou en rénovation
Bâtiments à usage d’habitation de la 1ère famille jusqu’à la 3ème famille
Etablissements recevant du public (ERP) de la 1ère à la 5ème catégorie avec un plancher bas du dernier niveau ≤28m
Bâtiments de bureaux ou industriels avec des hauteurs de planchers bas du dernier niveau ≤28m
Locaux à faible ou moyenne hygrométrie
Bâtiments situés dans les zones de vent de 1 à 4

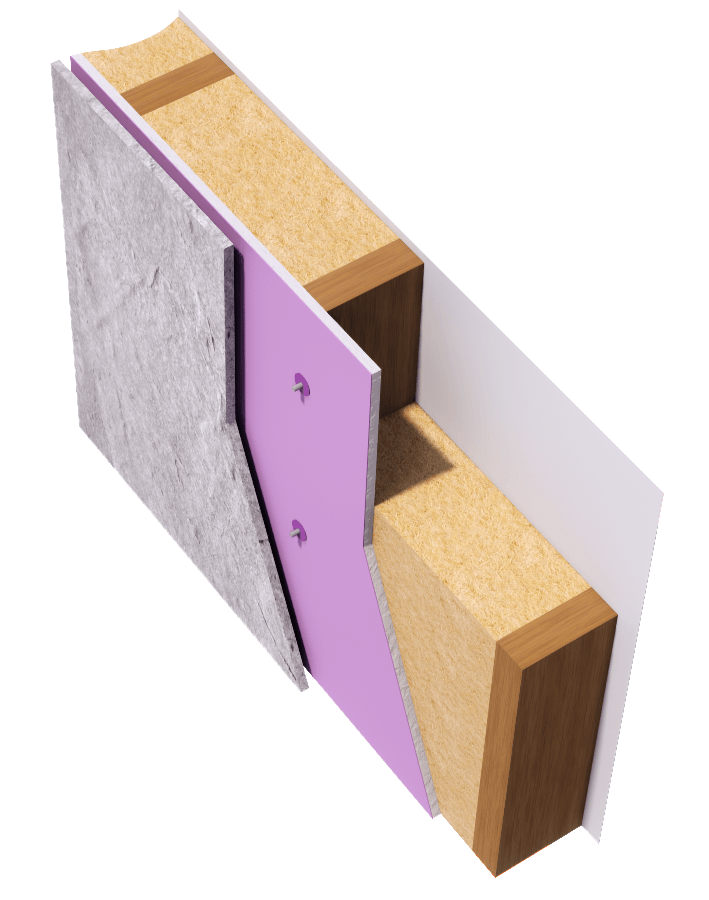

Schéma de principe

Interactive Hotspots Image

Avantages

baisse_emissions_CO2
feuille
main_planete_verte
Shorter lead times
Walls built more quickly thanks to prefabrication
Optimised design
Design optimised by combining wood and concrete: lighter, reduced total thickness of the complex
Panel modularity
Length, width and thickness can be adjusted to the particular project
Customised aesthetics
Customisable, attractive facings
Bearing structure
Panels can be designed for use as a bearing structure

An eco-designed product

Bio-based materials
Use of materials like wood and bio-based insulation for greater sustainability.
Carbon footprint
Carbon footprint limited by the use of a mixed solution and an innovative design, avoiding the use of aluminium frames.
A long-last complex
A complex with a guaranteed long service life thanks to protection integrated during the prefabrication stage and the weather resistance of UHPC.
Easy to disassemble and recycle
The complex is easy to disassemble and recycle, in line with the principles of the circular economy.
Better structural efficiency
The significantly reduced weight of the complex means savings on the bearing structure thanks to the use of an innovative connector system.
Waste-free
Generates no construction site waste as there is no cutting to size, thereby contributing to more environmentally friendly construction

Téléchargements

Facade Ossature Bois Beton - Fiche produit

(.pdf 5.16 MB)
